132/33KV BEHIATING GSS (KHANIKAR)

  • Home
  • 132/33KV BEHIATING GSS (KHANIKAR)
*For any changes/updation of information kindly contact IT Cell, AEGCL

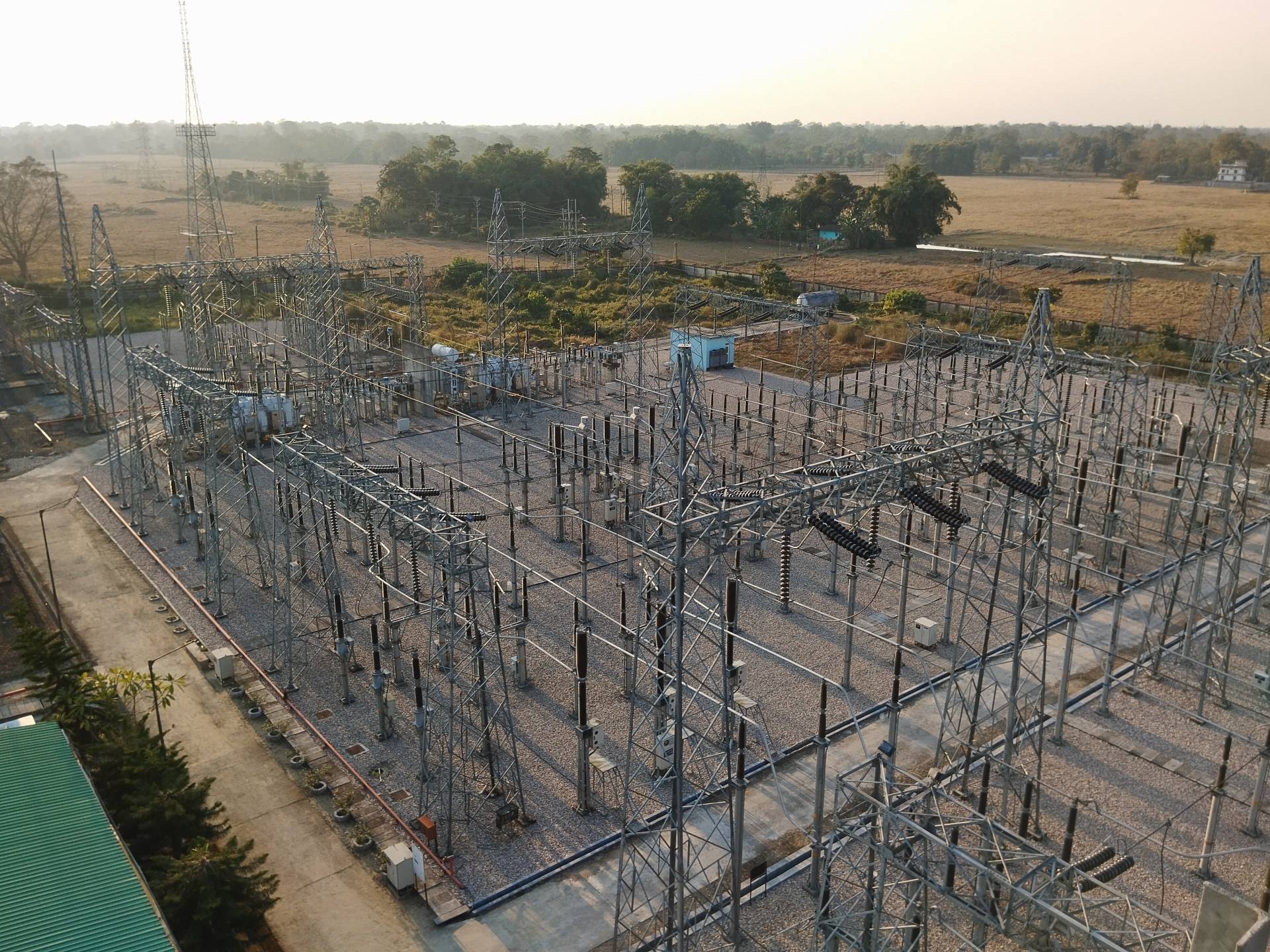

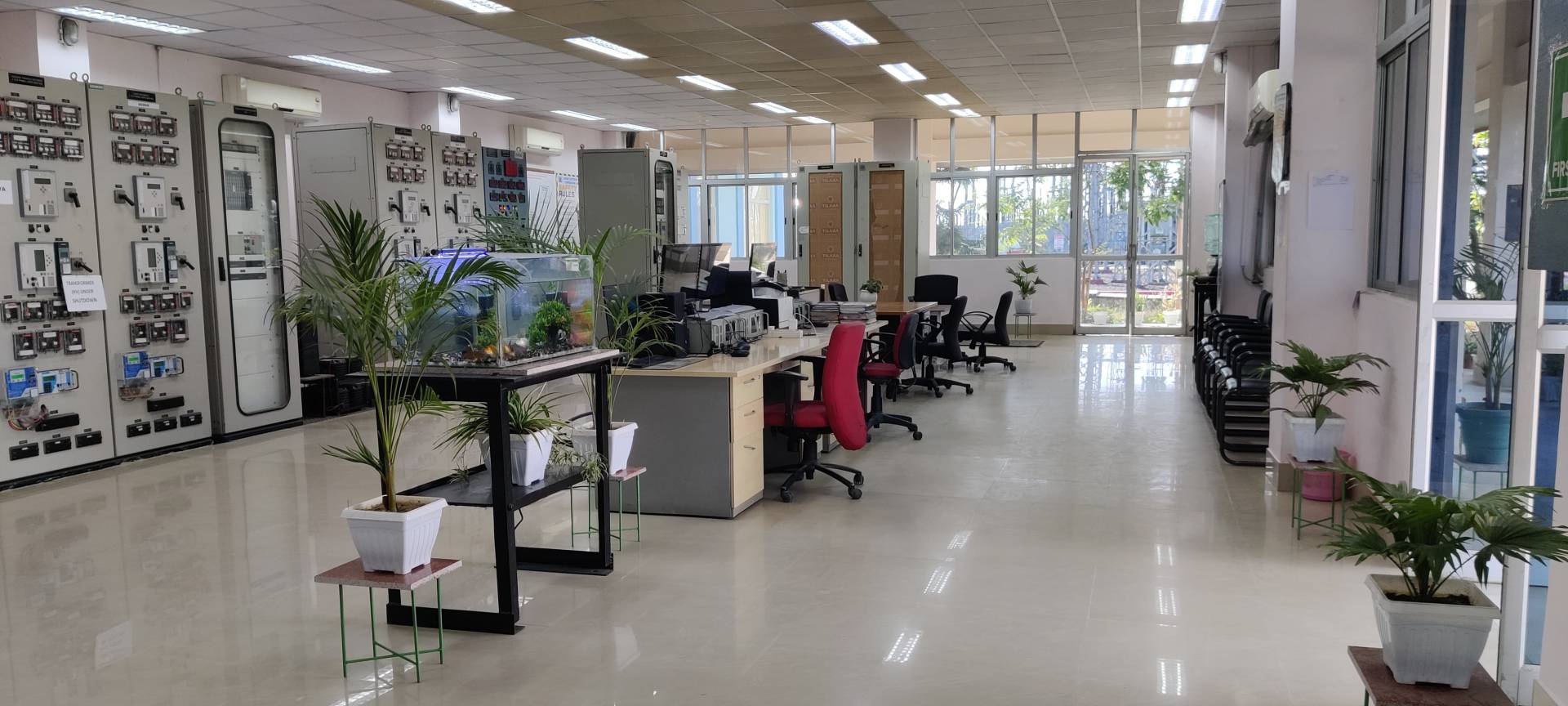

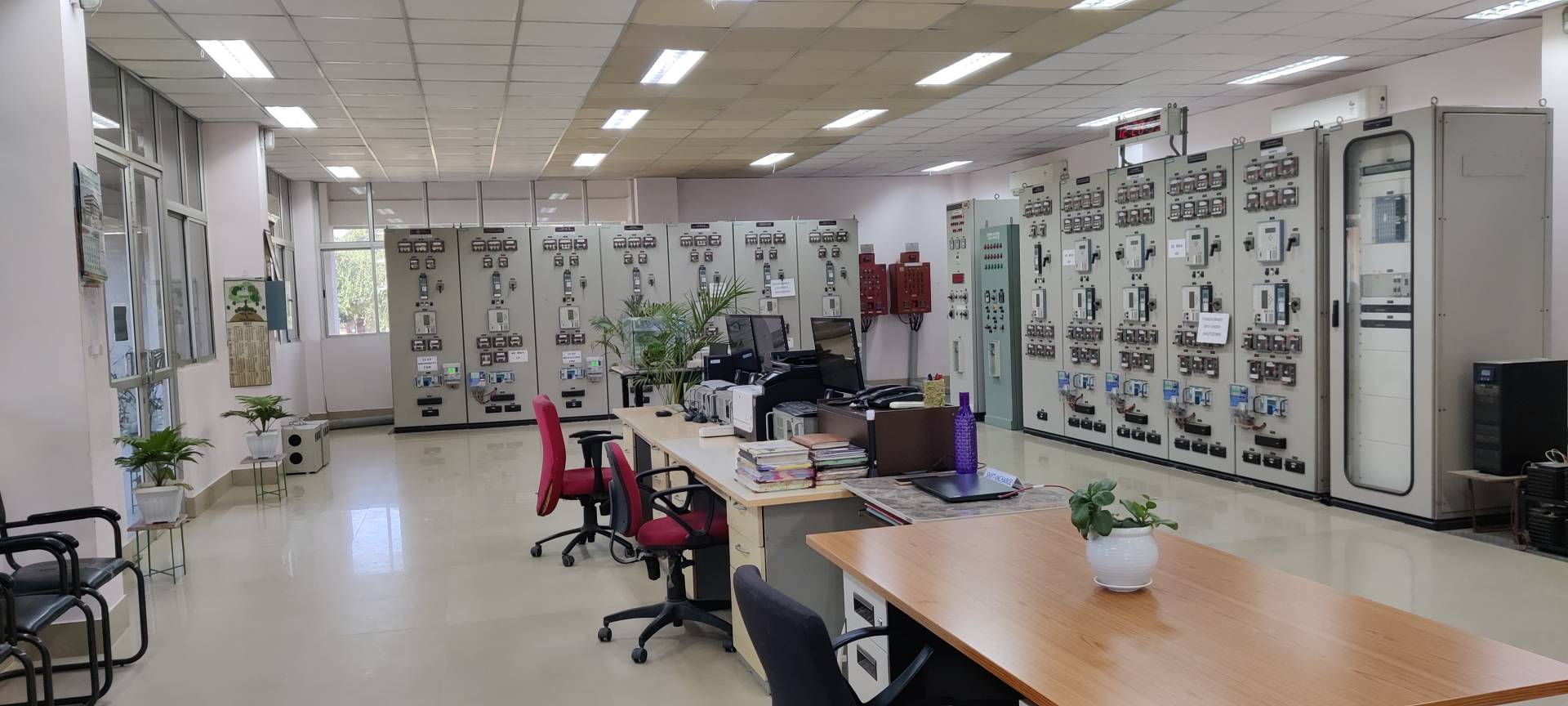

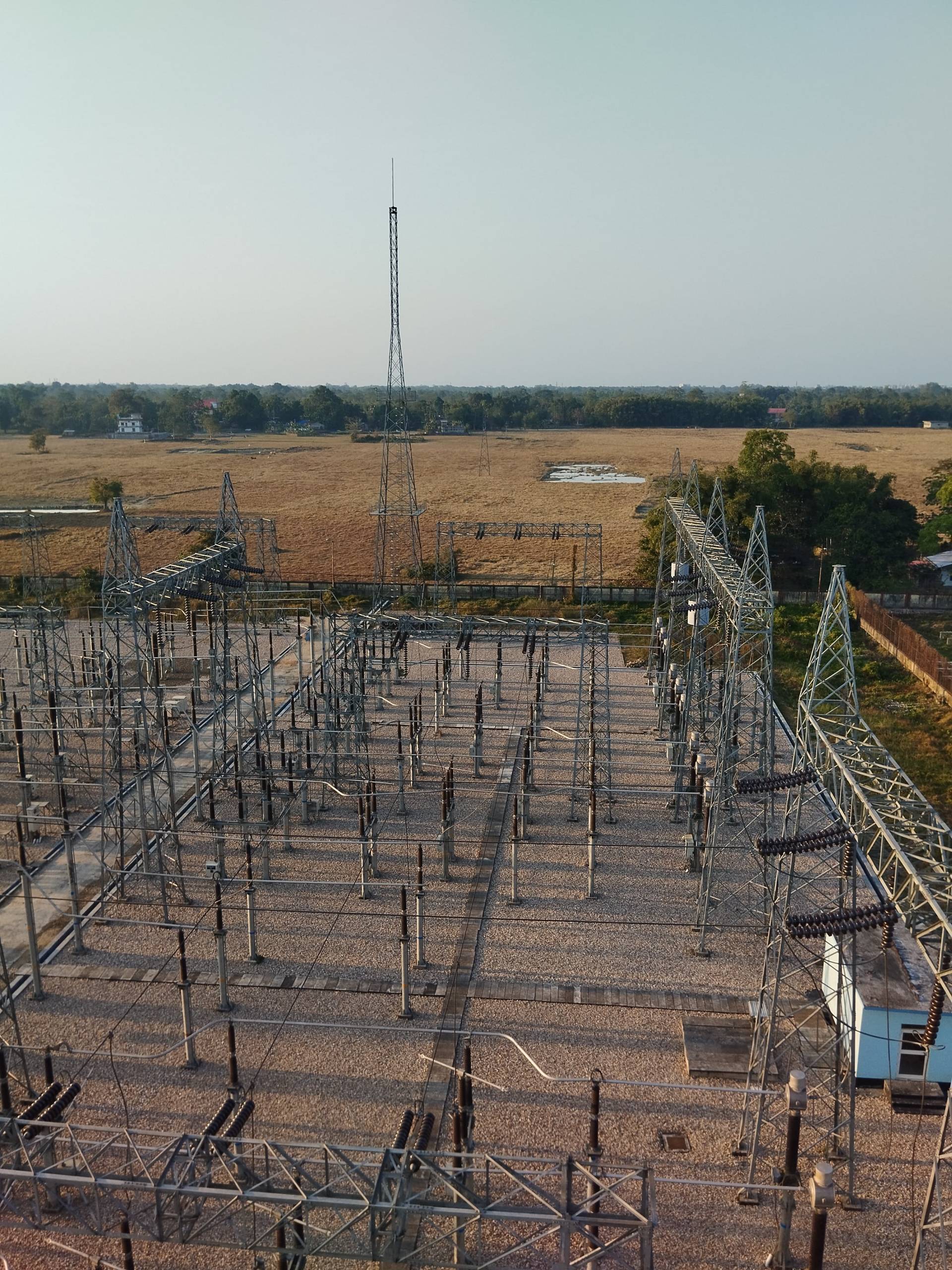

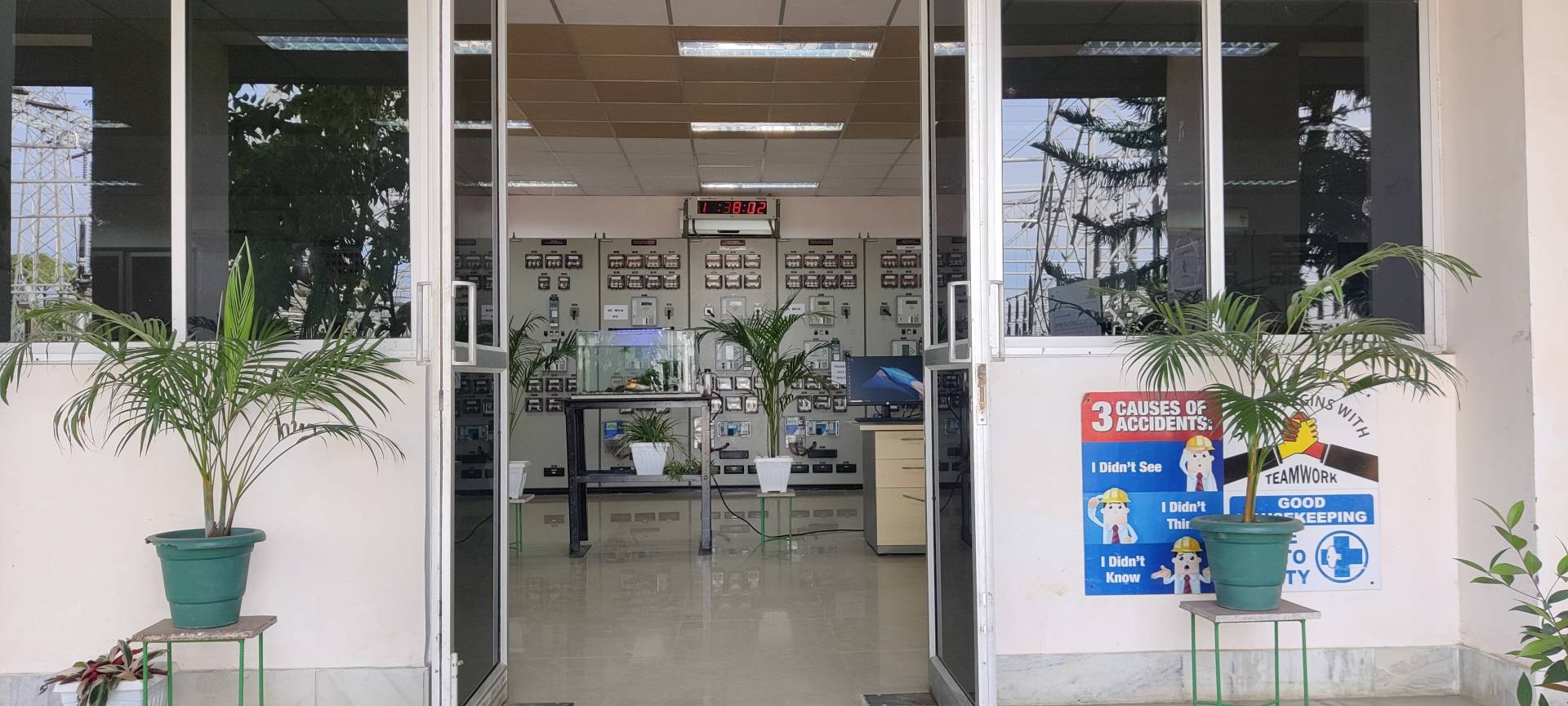

220KV BEHIATING(NEW DIBRUGARH)  GRID SUB STATION

WhatsAppImage2025-06-11at125055PM1
WhatsAppImage2025-06-11at125055PM
WhatsAppImage2025-06-11at120524PM3
WhatsAppImage2025-06-11at120524PM1
WhatsAppImage2025-06-11at125055PM2
WhatsAppImage2025-06-11at14319PM
previous arrowprevious arrow
next arrownext arrow
Shadow

Substation Incharge Details

Name : Bikash Ranjhan Dutta

Designation : Deputy Manager

Contact No : 9957239452

email : re.behiating@aegcl.co.in

Control Room Contact No : 8134938075

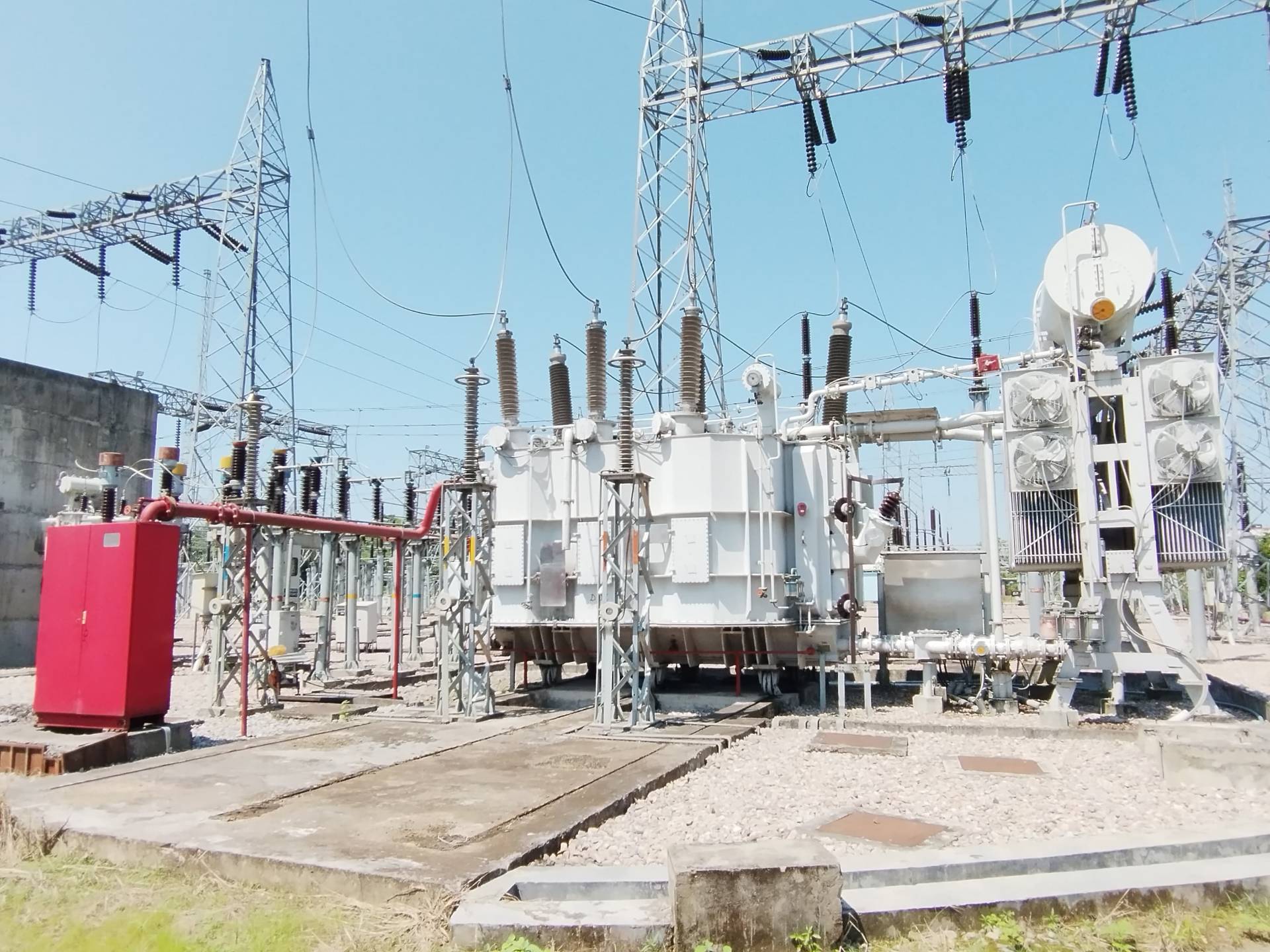

Transformer Details

220/132KV Power Transformers
Sl No MVA No Total MVA
1 100 1 200
2 100 1
132/33KV Power Transformers
Sl No MVA No Total MVA
1 40 1 65
2 25 1

EHV Line Details

Sl No Name of Transmission Line Voltage Level Distance
1 220kV Behiating-Tinsukia 1 220kV 53.005 km
2 220kV Behiating-Tinsukia 2 220kV 53.005 km
3 132 kV Behiating-Dibrugarh 132kV 8.95 km
4 132 kV Behiating-Moran 132kV 47.58 km
5 132 kV Behiating-BCPL-1 132kV 7.96  km
6 132 kV Behiating-BCPL-2 132kV 7.96  km
7 132kV Behiating-Railway TSS 132kV 8.96 km



33 KV Line Details

Sl No Name of Line/Feeder Voltage Level Distance
1 33 KV University feeder 33 kV 13 km
2 33 KV  Behiating  feeder 8 km
3 33 KV  Sesa feeder 6.1  km
4 33 KV  Khanikar  feeder 200 m
5 33 KV  Bogibeel  feeder 13.47km
6 33 KV  Chawkidingee feeder 11.87  km

IB/ Hostel Facility: 1.Officers' Hostel : 06 rooms
2. Staffs' Hostel : 06 rooms
